Abstract Stainless Landmark for an Airport Forecourt

An airport forecourt needed a landmark that would read at speed and from distance — the first thing travellers see arriving. We designed a flowing ribbon form in mirror-polished stainless, engineered to remain elegant at six stories of approach.

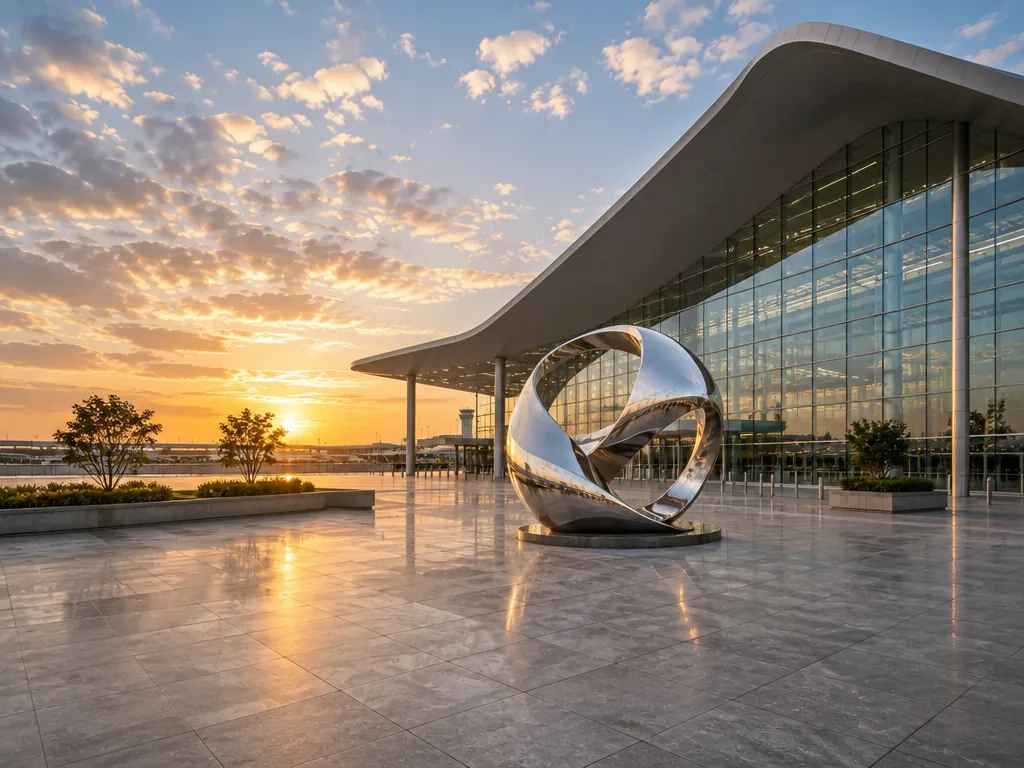

The sculpture is sized against the terminal facade and reflected in its glass. Wind loading was engineered for an open, exposed site, and the modular fabrication allowed the piece to be shipped and craned into place without closing the forecourt for long.

The brief

The client is an airport authority in Qatar preparing a new arrivals forecourt ahead of a seasonal capacity increase. It wanted a landmark that reads from a moving vehicle and from the terminal’s upper level.

The site is open and wind-exposed with no shelter, the operating forecourt could only be closed in short windows, and the finish had to survive heat, dust and coastal humidity. Twenty-two weeks were allowed from design freeze.

Design approach

The form is a single ribbon that rises and folds, so the composition changes as the viewer passes. At 8 m H × 10 m W it holds the scale of the terminal facade without competing with it.

Model studies tested three fold patterns from the driver’s eye line. The chosen geometry keeps a continuous leading edge so it reads as one line of light, with an open centre that reduces sail area.

Material & engineering

316 stainless was specified against the chloride load carried in on coastal air. Mirror polishing removes the surface defects where chlorides start to pit, so grade and polish belong together on this site.

A steel spine armature carries formed stainless panels, analysed for open-exposure wind speeds. Slotted base connections let the skin move through desert temperature swings without oil-canning.

Fabrication & finish

The piece was built as four modular bays so it could be welded, dressed and polished under workshop conditions rather than on a dusty forecourt. The bays were trial-fitted before shipment.

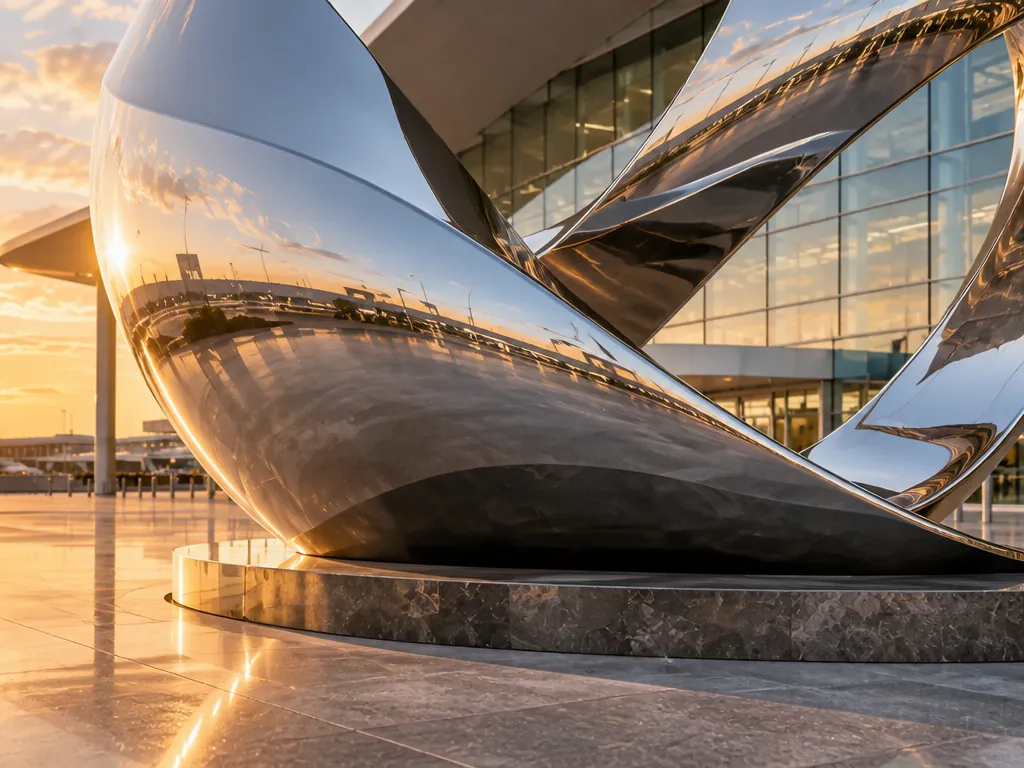

Polishing ran to a mirror on all outward surfaces, with hidden returns finished to a lower standard. Protective film stayed on through transport and came off only after final placement.

Installation

Modules were shipped by sea and lifted into place during nightly forecourt closures, working around live traffic. Base plates were set on pre-cast foundations with a surveyed template, then bolted and welded.

Outcome & value

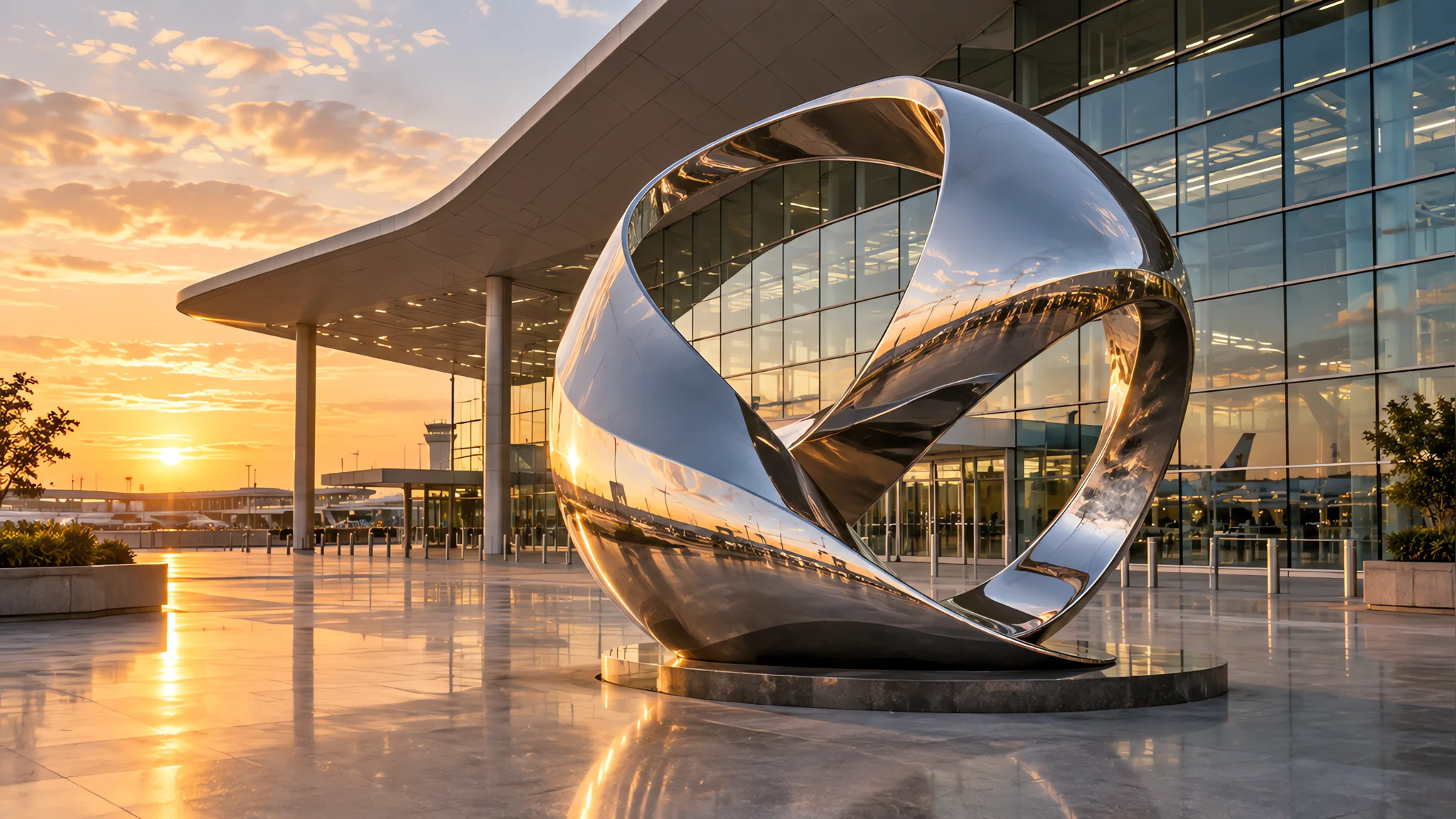

The landmark is now the reference point travellers use to find the exits, and the authority uses it in wayfinding communications. It catches the sun by day and the terminal lights at night.

Three years on the mirror still reads clean after routine washing, with no pitting reported. The value for the client is a low-maintenance asset carrying the airport’s identity.
